Products >> Stainless Steel Pipe Fittings >>

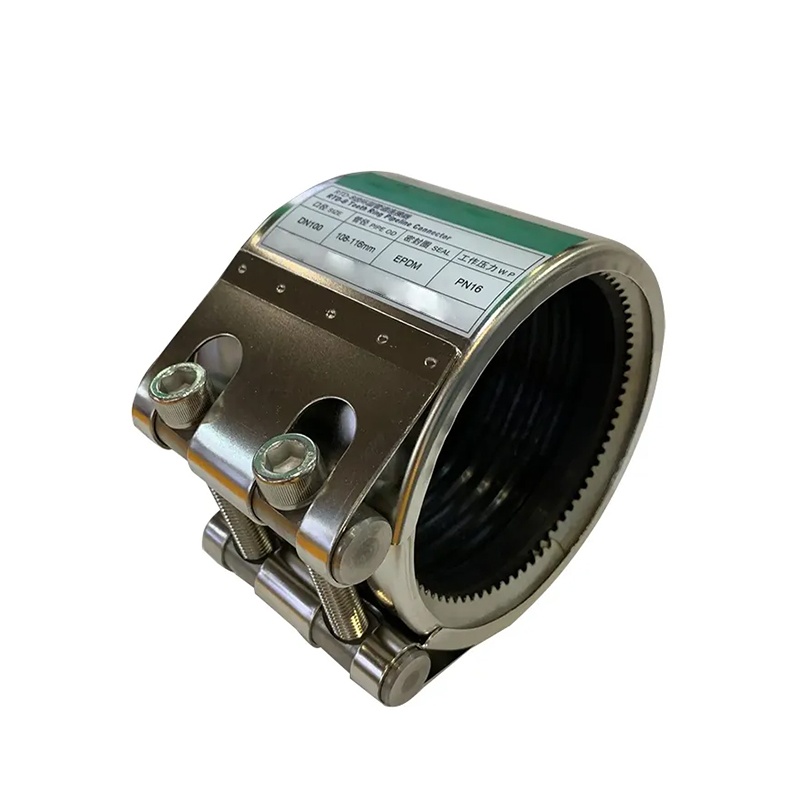

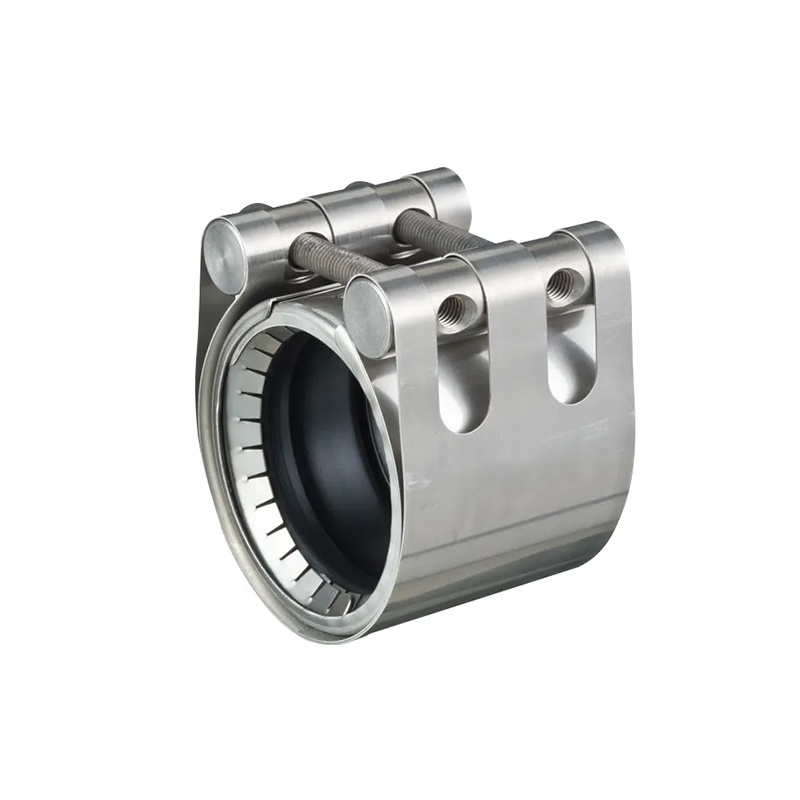

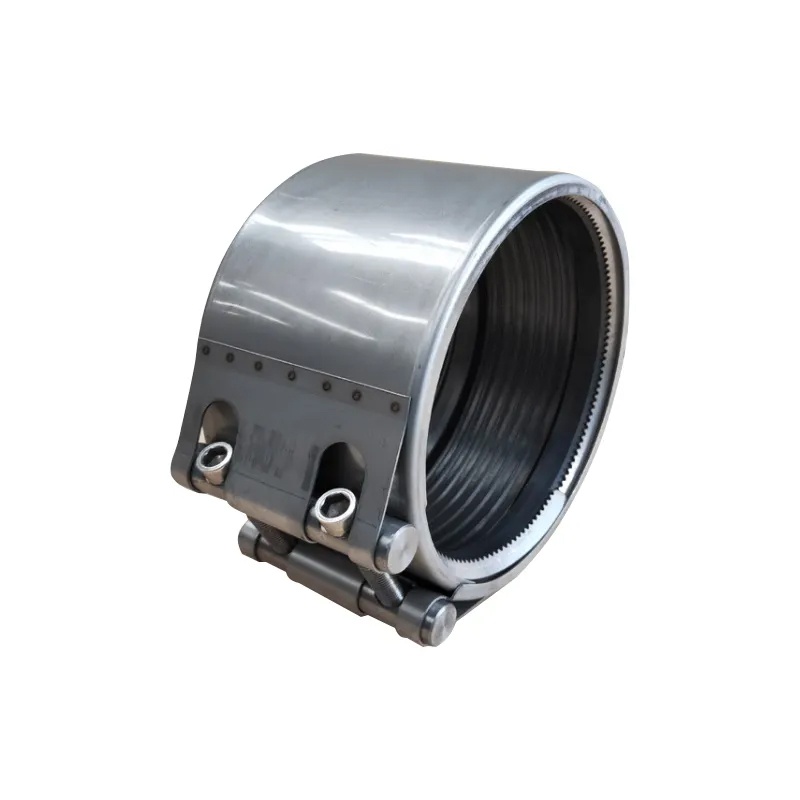

Stainless Steel Metal-Grip Coupling

Product No.：2023525145544
Online Inquiry

Briefs:
* used for pipe connection
* specific designed for PE,PVC,PPR,HPDE pipe
* suit for water, gas, industry pipeline
Features:
* used for both pipe connection and leaking pipe repair
* allow angular deflection and provide restraint.
* anticorrosive
* easy installation

S/N	Pipe OD	O. D Range	Pressure	Coupling Length	Screw Torque
	mm	mm	bar	mm	Nm
1	63	21-23	20	75	25
2	75	26-28	20	105	30
3	90	33-35	20	105	40
4	110	42-44	20	120	40
5	125	47-49	20	120	50
6	140	56-58	20	120	50
7	160	59-62	20	120	60
8	180	62-64	16	152	60
9	200	75-78	16	152	60
10	225	79-81	16	152	60
11	250	88-92	16	152	60
12	280	106-110	16	152	60
13	315	112-116	16	152	60
14	355	116-119	16	152	60
15	400	123-126	12	152	60
16	450	131-134	12	152	60
17	500	137-143	12	152	70
18	560	157-161	10	152	70
19	630	163-166	10	152	70
20	800	166-170	10	152	80
