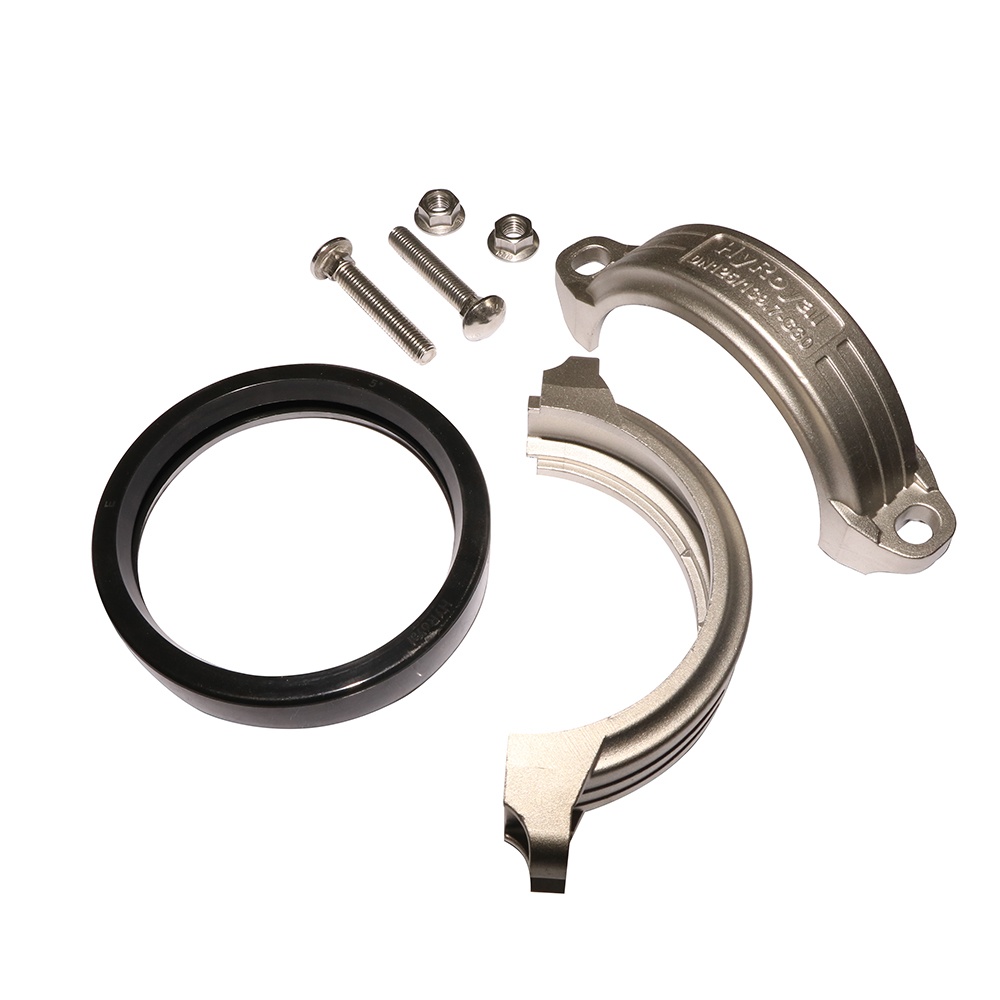

G30 Stainless Steel Grooved Coupling 5inch

Product No.：202458142753
Online Inquiry

Product Description
Model S30 Stainless Steel Flexible Coupling Series is designed for flexible pipe joint of the low pressure applications including Microfiltration, Ultrafiltration, Nanofiltration and Reverse Osmosis Systems and it's supplied with the material of SS304, SS316 and etc
Size:
* 3/4'' ~ 12'' ( DN20 ~ DN300)
Working Pressure :
* Maximum 350psi ( 25 bar)
* Working pressure dependent on material, wall thickness and size of pipe
Application:
* Provides a flexible pipe joint which allows for expansion, contraction and deflection
* This product joints standard Sch 40S cut grooved pipe
Material :
* Body Material Options : SS304, SS316, SS316L, SS CE8MN, SS Duplex 2204, SS Duplex 2507
* Rubber Sealing: EPDM

* Bolt & Nut : SS304, SS316

Model S30 Stainless Steel Flexible Coupling
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation	Coupling Dimensions			Coupling Bolts
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation	X	Y	Z	Qty	Size
mm/inch	(mm/inch)	(psi/bar)	(mm/inch)	mm/inch	mm/inch	mm/inch	pcs	mm
20 3/4	26.9 1.050	600 42	0-1.6 0-0.06	47 1.850	87 3.425	43 1.693	2	M10x40
25 1	32 1.260	500 35	0-1.6 0-0.06	53 2.087	90 3.543	43 1.693	2	M10x45
32 1 1/4	38 1.496	500 35	0-1.6 0-0.06	58 2.283	94 3.700	44 1.732	2	M10x45
32 1 1/4	42.4 1.660	500 35	0-1.6 0-0.06	62 2.441	106 4.173	44 1.732	2	M10x45
40 1 1/2	48.3 1.900	500 35	0-1.6 0-0.06	67 2.638	106 4.173	43 1.693	2	M10x45
50 2	57 2.244	500 35	0-1.6 0-0.06	77 3.031	116 4.567	43 1.693	2	M10x50
50 2	60.3 2.375	500 35	0-1.6 0-0.06	78 3.071	117 4.606	43 1.693	2	M10x50
65 2 1/2	73 2.875	500 35	0-1.6 0-0.06	94 3.700	134 5.275	44 1.732	2	M10x50
65 2 1/2	76.1 3.000	500 35	0-1.6 0-0.06	94 3.700	134 5.275	44 1.732	2	M10x50
80 3	88.9 3.500	500 35	0-1.6 0-0.06	110 4.330	150 5.905	45 1.771	2	M10x50
100 4	108 4.250	450 31	0-3.2 0-0.13	135 5.315	184 7.244	47 1.850	2	M12x60
100 4	114 4.500	450 31	0-3.2 0-0.13	139 5.472	190 7.480	48 1.890	2	M12x60
125 5	133 5.250	400 28	0-3.2 0-0.13	164 6.456	215 8.465	48 1.890	2	M12x60
125 5	141.3 5.563	400 28	0-3.2 0-0.13	168 6.614	215 8.465	48 1.890	2	M12x60
150 6	159 6.259	350 25	0-3.2 0-0.13	190 7.480	240 9.448	49 1.929	2	M12x70
150 6	168.3 6.625	350 25	0-3.2 0-0.13	198 7.795	246 9.685	49 1.929	2	M12x70
200 8	219.1 8.625	350 25	0-3.2 0-0.13	253 9.961	318 12.519	57 2.244	2	M12x70
250 10	273 10.750	300 21	0-3.2 0-0.13	315 12.401	396 15.590	59 2.322	2	M20x110
300 12	323.9 12.750	300 21	0-3.2 0-0.13	372 14.645	452 17.795	60 2.362	2	M20x110
