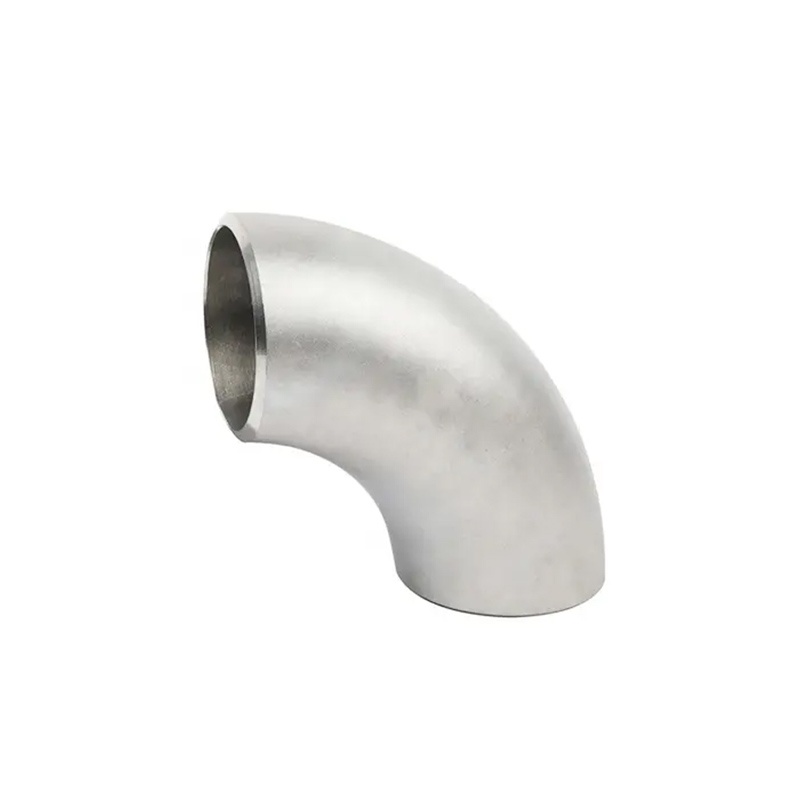

Stainless Steel Bend 1

Products		pipe fittings elbows, bends, tees, reducers, caps
Size		1/2" - 48"
Wall thickness		Sch5-Sch160 XXS
Standard		ANSI, ASME API5L, OCT, DIN and JIS, etc.
		we can also produce according to drawing and standards provided by customers.
Material		Carbon steel, alloy steel and stainless steel.
Packaging		Plywood Cases or pallets, plastic bag or as customers requirement
Surface Treatment		Shot blasted, rust-proof black oil or paint
Delivery Time		10-40 days
Quality		First grade
Others		1.Special design available according to your drawing.
		2.anti-corrosion and high-temperature resistant with black painting
		3. All the production process are made under the ISO9001:2000 strictly.
		4. A conformity rate of ex-factory inspection of products.

Norminal Pipe size DN	Outside Diameter at Bevel D		Center to End			Center to Center		Backto Faces
			45°Elbows	9Elbows		180° RETURN		180° RETURN
			B	A		O		K
	Series A	Series B	Long Radius	Long Radius	Short Radius	Long Radius	Short Radius	Long Radius	short Radius
15	21.3	18	16	38	-	76	-	48	-
20	26.9	25	16	38	-	76	-	51	-
25	33.7	32	16	38	25	76	51	56	41
32	42.4	38	20	48	32	95	64	70	52
40	48.3	45	24	57	38	114	76	83	62
50	60.3	57	32	76	51	152	102	106	81
65	73	76	40	95	64	191	127	132	100
80	88.9	89	47	14	76	229	152	159	121
9o	101.6	-	55	133	89	267	178	184	140
100	114.3	108	63	152	102	305	203	210	159
125	141.3	133	79	190	127	381	254	262	197
150	168.3	159	95	229	152	457	305	313	237
20o	219.1	219	126	305	203	610	406	414	313
250	273	273	158	381	254	162	508	518	391
300	323.9	325	189	457	305	914	610	619	467
350	355.6	377	221	533	356	1067	71	711	533
400	406.4	426	253	610	406	1219	813	813	610
450	457	478	284	686	457	1372	914	914	686
500	508	529	316	762	508	1524	1016	1016	762
550	559	-	347	838	559	1676	1118	1118	838
600	610	630	379	914	610	1829	1219	1219	914
650	660	-	410	991	660	For more sizes, please contact us
70o	711	720	442	1067	711	For more sizes, please contact us
